E-COAT+3 MASTER SERIES BOX FEEDER
PLEASE ALLOW 10 BUSINESS DAYS FOR DELIVERY
AUTOMATIC & MANUAL POWDER COATING EQUIPMENT
E-COAT+3 MASTER Series devices are upper segment devices where pneumatic and electrical parameters are digitally controlled from the front panel.
Its electrical controls give the opportunity to adjust the air values both independently and proportionally while remaining dependent on voltage and current. The factory settings, along with 50 different customizable electrical/pneumatic specifications, dual triggering options, PLC automation and bluetooth connectivity, make the E-COAT+3 MASTER the optimal solution for especially advanced manual and automated applications.
The sub-10 µA micro charge control option, as well as the 120kV-120µA maximum charge capacity and built-in LED lighting features create a unique coating experience for users. It can respond to different application needs with automatic, manual options and a wide range of accessories.
Advanced Control and Performance:
Accurate static voltage and current control with feedback
Hybrid proportional valve system not affected by inlet pressure changes
Proportional and independent pneumatic adjustment option
Ability to save 50 different prescriptions
4 quick prescription options
Easy operation thanks to the rotating adjustment knob
Remote control feature with buttons on the gun
Compatibility with automation systems thanks toTCP / IP connection
Fast navigation between recipes with double triggering
Quick gun cleaning with FastPurge module option
Quick control of the work with built-in LED lighting
Data log and analysis thanks to Bluetooth connection
Strong loading performance with 120kV-120µA charging capacity
Excellent coating even on difficult surfaces thanks to microcharging control below10 µA
- Fast color changes: Under 25 seconds to clean
- Efficient powder transfer: Smooth Surface Coating, Second Layer Coating and Difficult Surface Coating
- Easy to operate: Less than 3 minutes from training to production

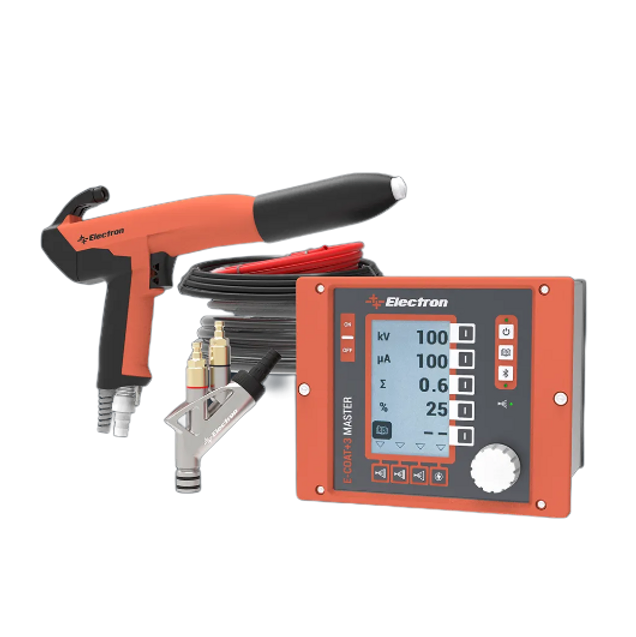

A06ECM01B+3
